Mobile HEPA filtered unit – Class ISO 5 type S / SP
Thumbnail Image

Mobile HEPA filtered unit – Class ISO 5 type S / SP

Reference : S SP

Protection

Manipulation

BENEFITS

  • Transportable
  • Overpressure of premises
  • Ultra-filtered air

Type S units (booster, spot) are intended to provide excess pressure with ultra-filtered air in
premises in order to very effectively and very simply reduce their dust levels.
The booster integrated into the partition blows ultra-filtered air into the room. This overpressure,
in relation to the surrounding environment, creates a barrier that prevents external particles from entering
in the room. This ensures control of the dust rate and the renewal rate.
room air.

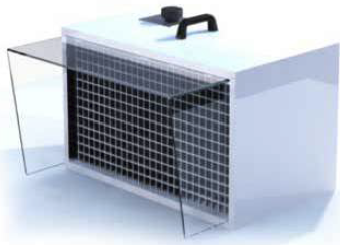

The SP model has a methyl methacrylate volume and a carrying handle

MODEL type S

S 3/3 350x350 mm profondeur 400 mm

S 3/6 350x650 mm profondeur 400 mm

S 3/9 350x950 mm profondeur 400 mm

S 3/12 350x1260 mm profondeur 400 mm

S 6/6 650x650 mm profondeur 630 mm

S 6/9 650x950 mm profondeur 630 mm

S 6/12 650x1260 mm profondeur 630 mm

MODELE type SP with handle & perpex volume

SP 3/3 350x350 mm profondeur 400 mm

SP 3/6 350x650 mm profondeur 400 mm

SP 3/9 350x950 mm profondeur 400 mm

SP 3/12 350x1260 mm profondeur 400 mm

SP 6/6 650x650 mm profondeur 630 mm

SP 6/9 650x950 mm profondeur 630 mm

SP 6/12 650x1260 mm profondeur 630 mm

Ask for a quote
Please enable JavaScript in your browser to complete this form.

Ask for a quote

Consult all references Download our catalog
