FANJET — Fan Filter Unit (FFU)

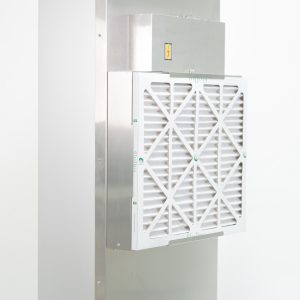

A self-contained HEPA/ULPA fan filter unit. Air is drawn through a G3 pre-filter by a powerful, quiet motor-fan and filtered by a HEPA (ULPA option) absolute filter; the MONOBLOC construction guarantees box integrity. ECM versions allow automatic flow regulation and centralized PC control (Modbus / BACnet). Available as the MONOBLOC version, whose welded construction guarantees full box integrity, and as the FANJET SP, whose absolute filter is interchangeable directly from the clean room — without dismantling the unit.
| Variants | Monobloc (sealed integrity) · SP (cleanroom-side filter change) |
| Type | HEPA / ULPA fan filter unit (FFU) |
| Fan | AC-normal or DC-ECM |
| Housing | Aluminium housing & filter frames |
| Efficiency (EN 1822) | H14 and U15 |
| MPPS efficiency | 99.995% · 99.9995% |
| DOP / Emery | 99.999% · 99.9999% |
| Noise level | 47 dBA (false ceiling) up to 54 dBA |
| Max. temperature | 131 °F (55 °C) |
| Total weight | Less than 77 lb (35 kg) |
| Benefits | ECM low consumption · Modbus / BACnet · ETL / UL listed |
From the catalogue
Two box versions are available: the Monobloc, whose welded construction guarantees box integrity, and the FANJET SP, whose absolute filter is changed directly from the clean room.
HEPA filtration
Miniplis-type media · 99.995% MPPS (H14) · epoxy-painted steel protection grid · anodized aluminium frame.
Pre-filtration
Cardboard frame · 85% ASHRAE (G3) efficiency · synthetic media.
Ventilation
Normal use 120 W, 1,000 rpm · 240 W max · turbine up to 1,200 rpm · 54 dBA (48 dBA in false ceiling).
ECM fan technology: low consumption (−30 to −40% vs conventional fans), very high yield, low heat loss, probe-free flow regulation, very high precision and low noise. Modbus / BACnet compatible · ETL / UL listed. Sound-absorber references: 6/6, 6/9, 6/12, 12/12.
Dimensions & Performance
Imperial units, converted from the metric catalogue. Airflow at nominal flow. Custom sizes available on request.
FANJET FFU range
Feed filter EN 1822 H14, 99.995% MPPS. Pressure drop in inches water gauge (in WG).
