FP & FPR — Pocket and V-Cell Filters
FP & FPR — Pocket and V-Cell FiltersFP & FPR — Pocket and V-Cell Filters
Bag & compact · up to ePM1 95% / E11

FP & FPR — Pocket and V-Cell Filters

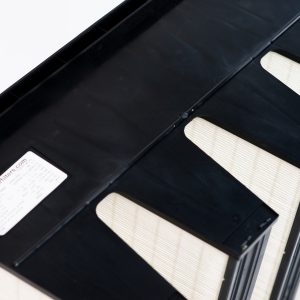

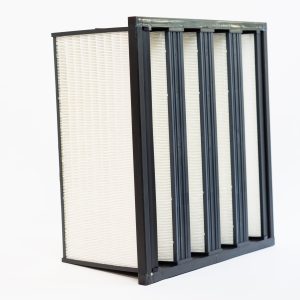

Medium-to-very-high efficiency bag (FP) and rigid V-cell (FPR) compact filters for air handling units and cleanroom pre-filtration. Synthetic / fiberglass media with a perfect frame-to-media seal; the FPR uses a recyclable plastic frame for easy replacement. Fireproof.

TypePocket (FP) and compact V-cell (FPR) filters
FP frameGalvanized steel, 20 mm
FPR frameRecyclable plastic (fireproof)
MediaPolypropylene / fiberglass; synthetic paper
Efficiency (ISO 16890)Coarse 90% up to ePM1 95%
FPR option (EN 1822)E10–E11; UL 900
Final pressure dropFP: initial + 100 Pa · FPR: 500 Pa
Max. temperatureFP 158 °F (70 °C) · FPR 176 °F (80 °C)
MountingAssemblable frame / casing
Request a quote →

Dimensions & Performance

Imperial units, converted from the metric catalogue. Airflow at nominal flow. Custom sizes available on request.

FP — medium-efficiency pocket filters

ReferenceDimensions (in)ClassPocketsMedia area (ft²)Airflow (CFM)Final ΔP (Pa)Weight (lb)
FP-04-363-B-015.0 × 23.3 × 11.3G4 · Coarse 90%322.61,001503.1
FP-04-463-B-015.0 × 23.3 × 19.3G4 · Coarse 90%434.41,648505.1
FP-04-663-B-015.0 × 23.3 × 23.3G4 · Coarse 90%646.32,001505.5
FP-04-366-B-023.6 × 23.3 × 11.3G4 · Coarse 90%324.81,001403.3
FP-04-466-B-023.6 × 23.3 × 19.3G4 · Coarse 90%442.01,648405.3
FP-04-666-B-023.6 × 23.3 × 23.3G4 · Coarse 90%649.52,001405.7
FP-05-363-B-015.0 × 23.3 × 11.3M5 · ePM10 50%322.61,001603.1
FP-05-463-B-015.0 × 23.3 × 19.3M5 · ePM10 50%434.41,648605.1
FP-05-663-B-015.0 × 23.3 × 23.3M5 · ePM10 50%646.32,001605.5
FP-05-366-B-023.6 × 23.3 × 11.3M5 · ePM10 50%324.81,001503.3
FP-05-466-B-023.6 × 23.3 × 19.3M5 · ePM10 50%442.01,648505.3
FP-05-666-B-023.6 × 23.3 × 23.3M5 · ePM10 50%649.52,001505.5

FPR — rigid V-cell compact filters

ReferenceDimensions (in)EfficiencyMedia area (ft²)Airflow (CFM)Final ΔP (Pa)Weight (lb)
FPR-06-36-HC11.3 × 23.3 × 11.4ePM2.5 60% (F6)96.91,2511006.6
FPR-06-46-HC19.3 × 23.3 × 11.4ePM2.5 60% (F6)161.52,0011009.9
FPR-06-66-HC23.3 × 23.3 × 11.4ePM2.5 60% (F6)204.52,50110012.1
FPR-07-36-HC11.3 × 23.3 × 11.4ePM1 65% (F7)96.91,2511106.6
FPR-07-46-HC19.3 × 23.3 × 11.4ePM1 65% (F7)161.52,0011109.9
FPR-07-66-HC23.3 × 23.3 × 11.4ePM1 65% (F7)204.52,50111012.1
FPR-08-36-HC11.3 × 23.3 × 11.4ePM1 75% (F8)96.91,2511306.6
FPR-08-46-HC19.3 × 23.3 × 11.4ePM1 75% (F8)161.52,0011309.9
FPR-08-66-HC23.3 × 23.3 × 11.4ePM1 75% (F8)204.52,50113012.1
FPR-09-36-HC11.3 × 23.3 × 11.4ePM1 95% (F9)96.91,2511606.6
FPR-09-46-HC19.3 × 23.3 × 11.4ePM1 95% (F9)161.52,0011609.9
FPR-09-66-HC23.3 × 23.3 × 11.4ePM1 95% (F9)204.52,50116012.1
